| popular specifications |
| Series operating system | Android 13 |
| Diagonal screen size | 6,55" |
| storage capacity | 256GB |
| Working memory | 8GB |
| Cpu/soc | MediaTek Dimensity 8020 |
| Resolution | 2400x1080 |
| Operating system |
| Series operating system | Android 13 |
| Mobile operating system | Google Android 13.0 |
| display |
| display Type | OLED |
| Diagonal screen size | 6,55" |
| Resolution | 2400x1080 |
| Vertical Res. (mobile) | 1.080px |
| Refresh rate | 144Hz |
| pixel Density | 402ppi |
| Relative screen size | 90,8% |
| Aspect ratio | 20:9 |
| Brightness (peak, HDR) | 1.200cd/m² |
| HDR-ondersteuning | HDR10, HDR10+ |
| Screen appearance | Flat |
| input Method | touchscreen |
| processor |
| Cpu/soc | MediaTek Dimensity 8020 |
| number of cores | 8 |
| processor speed | 2,6GHz |
| video Chip |
| Integrated GPU | Mali-G77 MC9 |
| Memory and storage |
| Working memory | 8GB |
| storage capacity | 256GB |
| SIM card |
| number sims | Dual |
| SIM Slot 1 | ESIM |
| SIM Slot 2 | nanosim |
| ESIM | Yes |
| Camera |
| Number of cameras ' s behind | 2 |
| Number of cameras ' s for | 1 |
| camera Resolution | 50MP |
| diaphragm | 1,4 |
| sensor Size | 1/1.5" |
| Camera Resolution (for) | 32MP |
| Camera Comments ' s | 50 MP 1/1.5"" optical format f/1.4 aperture 1.0 µm pixel size | Quad Pixel Technology for 2.0 µm Omni-directional PDAF Optical Image Stabilization 13 MP Ultrawide angle (120° FOV) Macro Vision f/2.2 aperture 1.12 µm pixel size |
| Camera-autofocus | Yes |
| Gsm-flitsertype | single LED |
| Supported video resolution | 3840x2160 (4K) |
| Stabilization | Digital stabilization Optical stabilization |
| wireless connections |
| 5G-netwerk | Yes |
| Mobile network | 2G - edge, 2G - gprs, 3G - hsdpa, 3G - hspa, 3G - hspa+, 3G - hsupa, 3G - umts, 4G - lte, 4G - lte-a, 5G |
| Note 4G/5G band | 5G: n1/2/3/5/7/8/20/28/38/40/41/66/77/78 4G: B1/2/3/4/5/7/8/12/13/17/20/26/28/32/38/39/40/41/42/43/66 |
| With Wi-Fi | Yes |
| Wi-Fi band | 2.4GHz, 5GHz (band 1) |
| Connection (WLAN) | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| With bluetooth | Yes |
| Bluetooth | Bluetooth 5.2 |
| Other wireless connections | Near Field Communication (NFC) |
| Gps | Yes |
| Location determination | A-GPS, Galileo, GLONASS, GPS, LTEPP, SUPL |
| connections |
| Gsm-connector | USB 2.0 Type-C |
| Sound |
| Loudspeakers | Stereo |
| functionality |
| Smartphone-functies | Motion sensor (g-sensor), Gyro sensor, Compass, Fast charging, Vibration |
| Biometric Security | Face Recognition, Fingerprint Scanner |
| Fingerprint scanner placement | Front (on screen) |
| Battery and charger |
| Battery Capacity (mAh) | 4.400mAh |
| wireless charging | Yes |
| Fast charging technology | TurboPower |
| Maximum power fast charging wired | 68W |
| Maximum power wireless fast charging | 15W |
| phone Model |
| phone Model | Bar |
| External influences |
| IP-classificatie | IP68 fabric (full) and waterproof |
| External influences | Splashproof, Dust-resistant, Moisture-proof, Waterproof |
| Dimensions and weight |
| Length | 158,43mm |
| Width | 71,99mm |
| Thickness | 7,58mm |
| Weight (grams) | 171g |
| Color and origin |
| Color | Black |
| Warranty and details |
| Release date | May 2023 |
| Software support | Until May 2027: https://en-emea.support.motorola.com/app/software-security-update/ |
| Software support info | No information is known to Tweakers, there may be more information on the Motorola site. |
| End of software support | 2027 |
| Durability |
| Included extras smartphone/tablet | Protective cover, Data cable, Charger |
| More information |

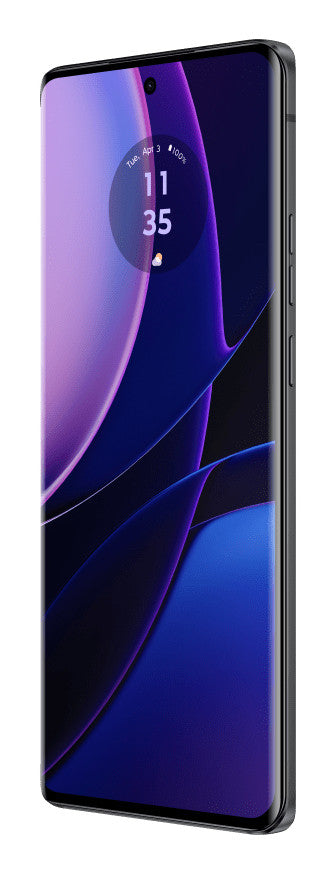

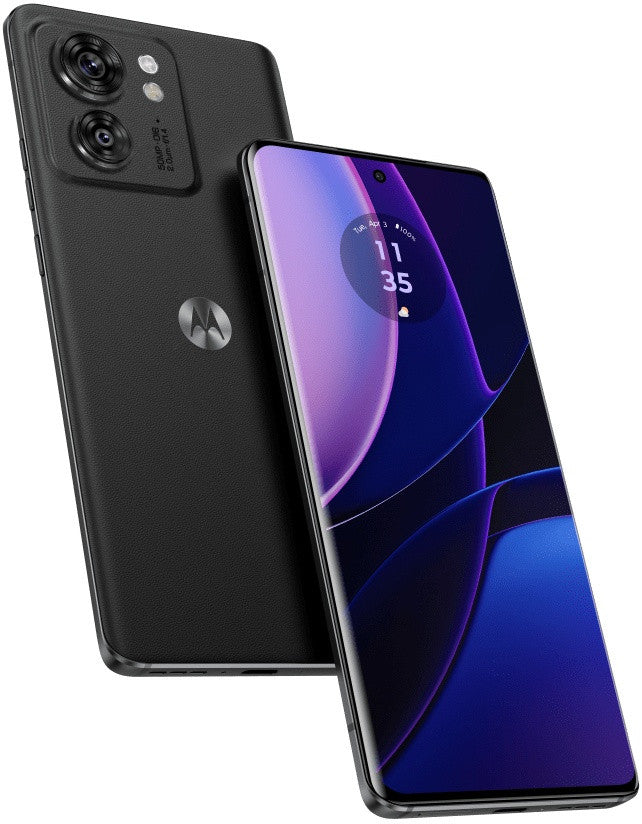

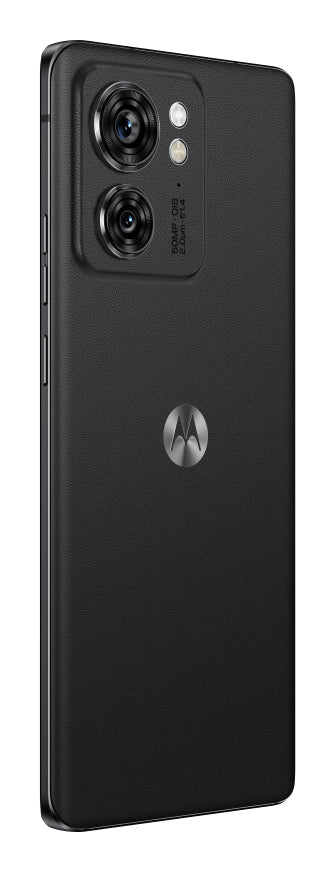

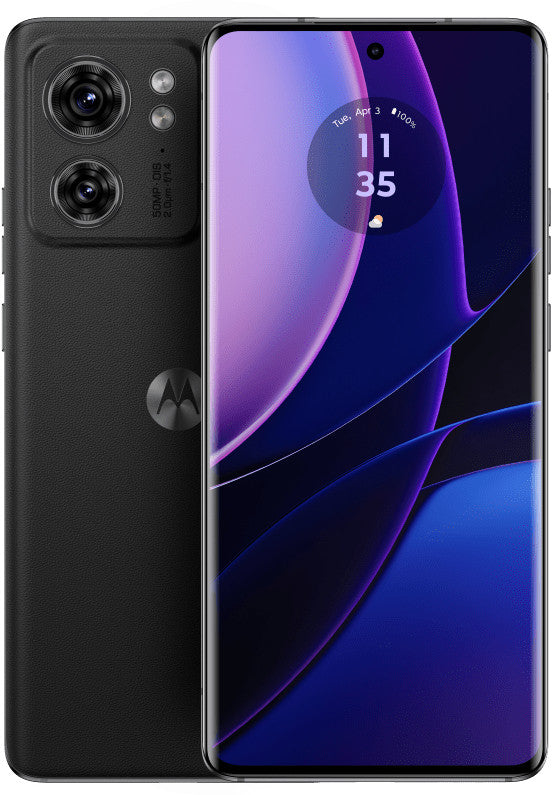

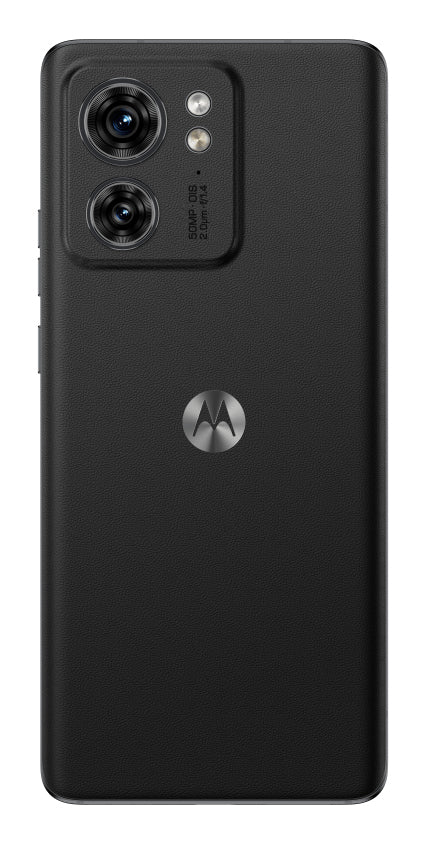

| Product | Motorola Edge 40 |
| Category | Smartphones |
| Brand | Motorola |
| EAN | 0840023242809 |
| SKU | PAY40005SE |
